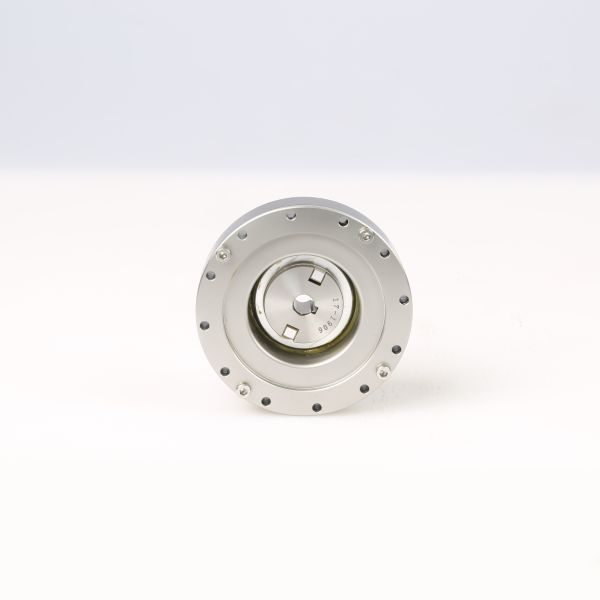

Hollow Shaft Output 8000rpm Harmonic Drive Speed Reducer ISO9001

Name: Hollow Shaft Output 8000rpm Harmonic Drive Speed Reducer ISO9001
Brand: Wanshsin
Price: 1 USD

Brand Name : Wanshsin

Model Number : WSHG-25-100

Certification : ISO9001, CE, CCC

Place of Origin : China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10,000 Pieces per Month

Delivery Time : 3-7 working days

Packaging Details : Carton Package

Backlash : ≤ 20 arc/sec

Size Series : 14/17/20/25/32

Output Torque : 3.5Nm-160Nm

Rated Input Speed : 3000-3500rpm

Gearing Arrangement : Harmonic

Customization : Acceptable

Material : Stainless Steel

Color : Silver

Contact Now

Harmonic Driver Reducer Maximum Input Speed 8000rpm Hollow Shaft Output for CNC Machines

PRODUCT FEATURESS

1. Tooth side clearance can be adjusted.
In the meshing of harmonic gear transmission, the gap between the flexspline and the rigid gear mainly depends on the shape of the wave generator and the tooth profile of the two gears. Therefore, the backlash can be adjusted to make the transmission backlash small, even in some cases. Can reach zero side clearance

2. High transmission efficiency.
Compared with other transmissions of the same speed ratio, harmonic transmission has a high efficiency due to the small number of moving parts and the low speed of the meshing tooth surface. With the difference in speed ratio (u=60-250), the efficiency is about 65 -About 90% (lower efficiency of harmonic complex wave transmission), the wear of tooth surface is very small.

3. Good coaxiality.
The high-speed shaft and low-speed shaft of the harmonic gear reducer are located on the same axis.

Model	Ratio	Rated Torque When Input 2000r/min	Maximum Allowed Torque for Starting and Stopping	Maximum Allowed Average Load Torque	Maximum Allowed Instantaneous Torque	Maximum Allowed Input Speed	Arcsec	Lifespan (hours)
WCSF	50-120	5.4-137	18-353	6.9-216	35-686	4500-8000	10-20	10000-15000
WCSG	50-120	6.3-160	21-413	8-253	42-803	4500-8000	15-20	10000-15000
WSHG	50-120	6.3-160	21-413	8-253	42-803	4500-8000	15-20	10000-15000
WSHD	50-100	3.5-91	11.4-221	4.6-143	23-397	4500-8000	10-20	10000-15000
WCSD	50-100	3.5-91	11.4-221	4.6-143	23-397	4500-8000	10-20	10000-15000

Hollow Shaft Output 8000rpm Harmonic Drive Speed Reducer ISO9001

FAQ

Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size

Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.

Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.

Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
